Cat3 Unshielded Jack
- Add Product to Favorites
- Add Company to Favorites
Product Details:
| Model Number | JP-U3-1 |
|---|---|
| Minimum Order Quantity: | 500 Piece/Pieces |
| Packaging Details: | 500 pcs/carton |
Detailed Product Description

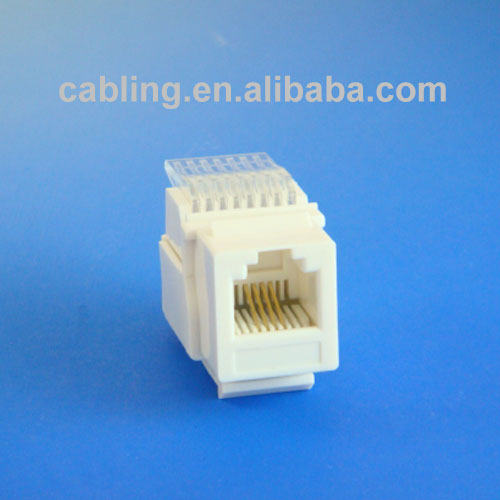

Cat3 Unshielded Jack
Tooless easy install
Accept 22-26 AWG Solid Wire
3u to 50u Gold plating on contact area
RoHS
Cat3 Unshielded Jack
6-position, 6-conductor tooless telephone snap-in connectors feature color-coded wiring labels plus fast, accurate 110 termination of station wiring. Meet standards for UL, NEC Article 800, and FCC Part 68 requirements.
Features:
-
Accept 22-26 AWG Solid Wire
-
Punching duration: 250 times.
-
Inserting duration: 750 times.
-
Tooless easy install
Electrical Characteristics:
-
Contact Resistance: ≤2.5 M ohm
-
Insulation Resistance: ≥1000 M ohm
-
Dielectric Strength: DC1000V or AC700V in 1 min., No Arc & Spark-over.
Material:
-
IDC Clips: Tinned phosphor bronze pins..
-
Housing and other plastic parts’ material: PC UL94V-0
-
PCB: FR4 1.6mm(0.04") thickness, 2 layers
-
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u to 50 u Gold plating on contact area
